1. Thermal Expansion: Gage Blocks vs. Micrometers

a. Gage Block Deformation Example: Steel vs. Ceramic

Consider a scenario where 100 mm gage blocks of different materials are exposed to a 5 °C temperature rise (from 20 °C to 25 °C). Using representative coefficients of thermal expansion (CTE):

Implication: If not thermally stabilized or corrected, steel gage blocks will expand significantly more than ceramic blocks—potentially introducing up to 2.5 µm difference in a 100 mm reference length. For tight tolerance measurements, this is a non-negligible error.

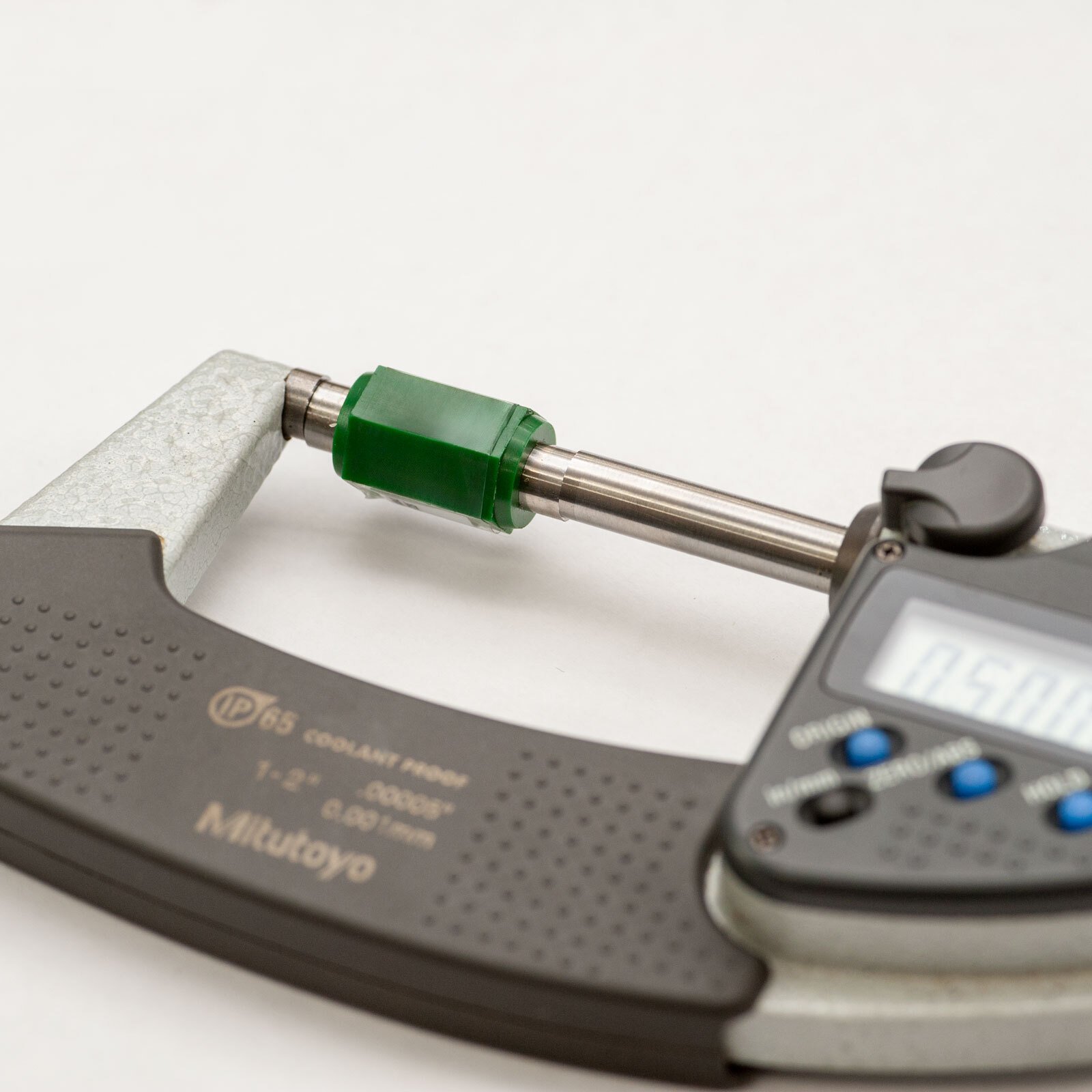

b. Micrometer Frame Expansion

The micrometer frame and spindle, typically made of steel or aluminum alloys, also expand when subjected to temperature changes. If a micrometer is at 23 °C while the gage block is at 20 °C, the following errors may accumulate:

• Frame Expansion: The spindle may expand axially, reducing the apparent gap between anvil and spindle, thus undercounting the length of the gage block.
• Thimble Drift: Small errors may also result from expansion of the threaded section, affecting pitch or screw advance.

2. Combined Error: Measurement System

When both the gage block and the micrometer are not at the same temperature or are made of materials with different CTEs, their combined thermal behavior can introduce significant uncertainty.

Example Case:

• Gage Block: Ceramic (CTE = 6.5 ×10⁻⁶/°C)
• Micrometer: Steel (CTE = 11.5 ×10⁻⁶/°C)
• ΔT (Temperature difference): 2 °C (micrometer warmer)

Total Expansion Error (Uncorrected):

• Gage Block expansion: 1.3 µm
• Micrometer spindle expansion: 2.3 µm
• Net error: ≈ 1.0 µm apparent undermeasurement

In this case, the measurement appears shorter than it actually is, due to the micrometer expanding more than the reference standard.

3. Non-Contact Laser Micrometers and Air Effects

Laser micrometers eliminate physical contact but introduce environmental dependencies via the optical path.

a. Air Refractive Index Sensitivity

Laser micrometers depend on the refractive index of air (n) to convert optical path length to physical dimension. This index varies with:

• Barometric pressure
• Temperature
• Humidity
• CO₂ concentration

b. Practical Impact

At 632.8 nm wavelength (common for He-Ne lasers), an uncorrected 5 hPa pressure change or 1 °C temperature shift can cause length deviations of 0.1–0.2 µm over 100 mm. These are substantial in high-precision measurements.

Conclusion: For laser micrometry, ambient conditions must be actively monitored and corrected—typically using Edlén’s equation or built-in sensors.

4. Key Takeaways

• Thermal mismatch between micrometer and gage block can lead to μm-level errors.
• Ceramic blocks offer better thermal stability but require proper temperature control.
• Steel micrometers are more sensitive to hand heat and environment, and should be allowed to stabilize before use.
• Laser micrometers require correction for air refractive index, and environmental drift should be recorded and compensated in software.
• Consistent temperature (20.0 °C), thermal stabilization, and material matching are essential for high-confidence dimensional measurements.
•

Conclusion

Dimensional measurement does not occur in a vacuum. Every measurement is made within an environment that either supports accuracy—or undermines it.

For quality managers, environmental control is a governance issue.

For metrologists, it is a technical reality.

For organizations pursuing reliable data, it is non-negotiable.

Understanding and managing environmental impacts is essential to producing measurement results that are accurate, repeatable, traceable, and defensible.

Richard J. Bagan, Inc. supports dimensional metrology programs with ISO/IEC 17025-accredited calibration, uncertainty analysis, and technical guidance—helping organizations align real-world measurements with real-world requirements.
